OJDT 1000 Automatic Interleaf Draw Tape Bag-on-roll Making Machine

This draw tape on roll garbage bag machine is used for producing traditional and biodegradable draw tape garbage bags. Draw string for easy lifting and taking away, this design allows user to close bag easily without touch the waste. Interleaf winding achieve smaller roll diameter with same quantity of bags, no need to tear one by one when using bags.

Online Inquiry Whatsapp

Performance and features:

1. This equipment is the first of its kind in China, independently developed and manufactured by integrating advanced technologies from both domestic and international sources.

2. The entire machine is equipped with a computer control system and drive by servo motor, ensuring high operational precision and strong stability.

3. Equipped with a photoelectric automatic tracking system, it supports one-button switching between white and colored bags, adopts microcomputer-controlled length setting, automatic counting, low-volume alarm, and automatic temperature control functions.

4. It has automatic functions for cutting, air injection, semi-circular hole making, strap threading, strap shifting, side sealing, bottom sealing, and point breaking.

5. Utilizing a tension-free sealing mechanism, the sealing and breaking processes are completed simultaneously, resulting in a firm, flat seal and a neat, aesthetically pleasing appearance.

6. It can realize integrated processing and production of continuous roll-up and drawstring garbage bags and continuous roll-up flat bags.

7. The entire machine is a fully automated production line, with a leading level of automation in the industry. It is an ideal device for producing folded, flat-mouth garbage bags and can perfectly replace similar imported products.

Technical details:

MODEL	OJDT 1000
Bag sealing size	Film width(mm)	400-900
	Film Diameter(mm)	800
	Maximum bag width(mm)	900
	Maximum bag length(mm)	700
	Film Thickness(mm)	0.008-0.05
	Bag making speed	50-140pcs/min
	Bag making speed	60m/min
	Speed for changing the roll	Max.10
Production of roll	Draw Tape Width(mm)	100mm
	Draw Tape Diameter(mm)	600mm
	Roll Width(mm)	300
	Roll Diameter(mm)	170
Bag making method	overlap/ interleaved draw tape rolling bags
material	HDPE
Total power	20kw
Machine weight	6000kg
Dimension(LXWXH)	1050021001900mm

Electrical equipment:

Items	Parameter
PLC brand	Delta from Taiwan
Touch Screen brand	Delta from Taiwan
Inverter brand	Delta from Taiwan
Motor brand	WUHU DELI
Servo motor system brand	Delta from Taiwan
Contact brand	Schneider from France
Intermediate relay brand	Schneider from France
Button brand	Made in China
Feeding photoelectric brand	Panasonic from Japan
Tracking photoelectric brand	sick Sick from Germany
Switching power brand	Delta from China Taiwan
Cooling fan brand	Delta from China Taiwan
Temperature controller brand	XMDED From China
Proximity switch brand	FOTEK from China Taiwan
Electromagnetic valve brand	YCS from Korea
Cylinder brand	Xinyang from China Taiwan
Precision pressure regulating valve and rotary joint brand	SMC from Japan
Oil-water separator brand	SMC from Japan
Rewinding parts whole set of pneumatic Components	SMC from Japan/YCS from Korea

Spare parts list:

Description	Model	Unit	Quantity
Hall		pcs	1
Thermocouple	3 meters	pcs	1
Conductor		pcs	1
Potentiometer		pcs	1
Tools with the machine		set	1
Electric heating Plate	According to the size of the hot iron	pcs	2
Indicator		pcs	1
Button		pcs	1
24V Relay		pcs	1

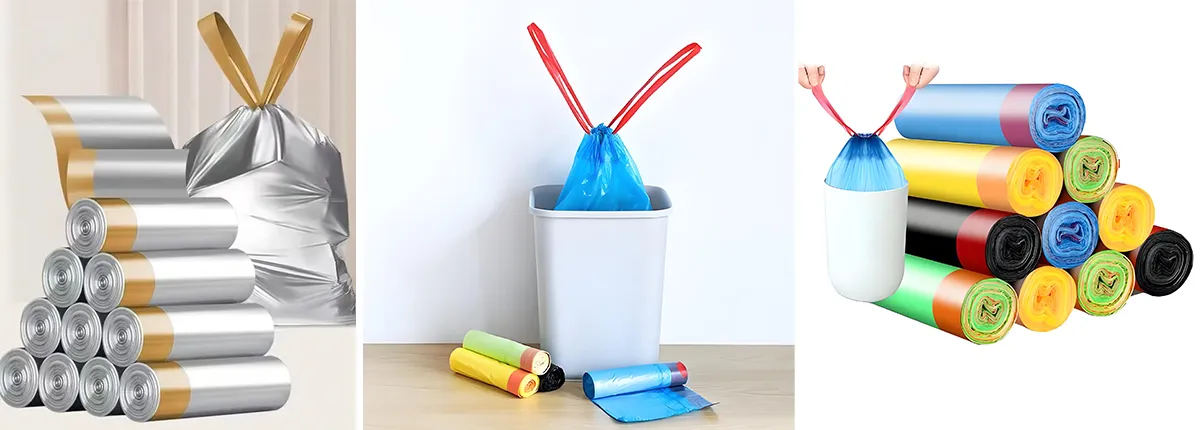

Final products of machine:

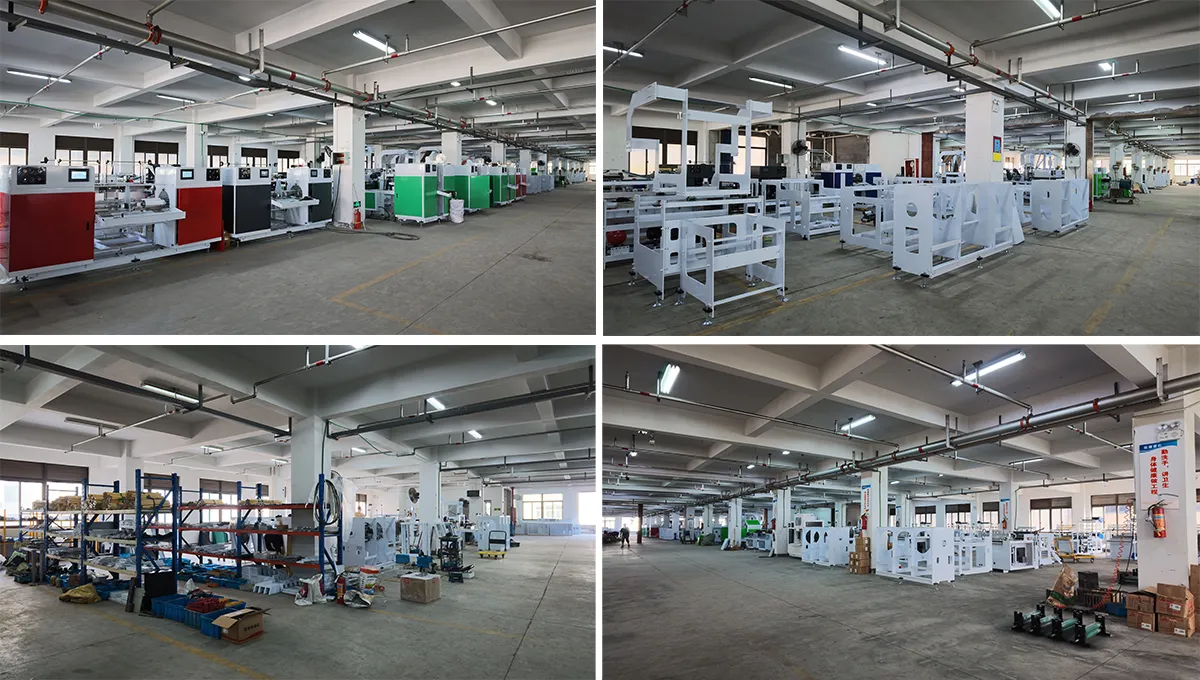

Our workshop:

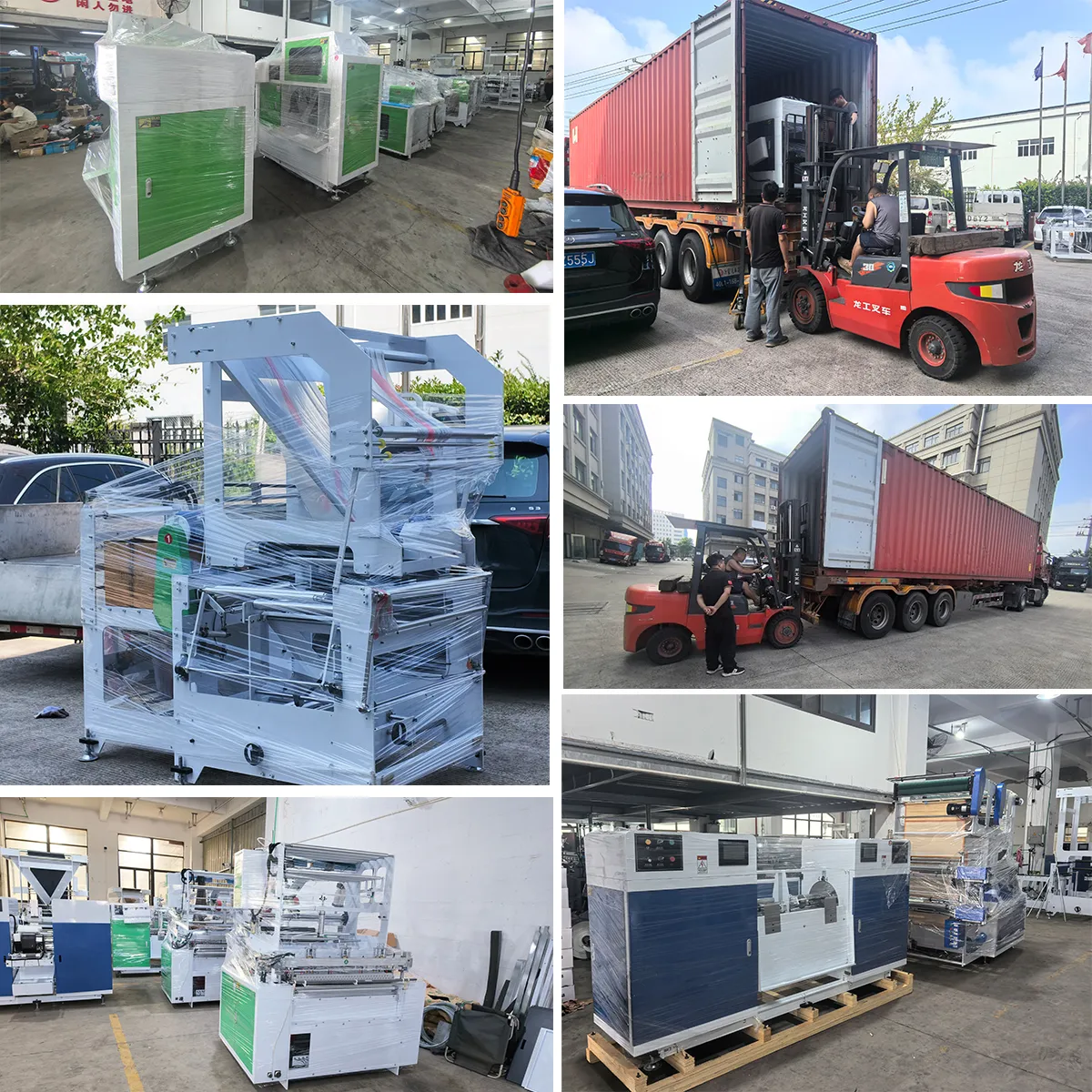

Shipment:
