OJCF 800 C-fold On Roll Bag Making Machine

This machine is used to produce bottom sealing on roll bags in C-fold type, wide bag sealing first then fold from both sides to the middle, which makes big bag into smaller, for easy packing and storage, this kind of machine is very popular in the Middle East, Central Asia and Russia.
Performance and features:

1. The entire machine adopts computer control, automatic counting with a programmable count alarm;

2. The entire process, from film rolls to finished bag, is completed automatically in a single operation;

3. Servo motors and photoelectric tracking ensure accurate bag length;

4. Hot sealing knife and perforation knife are designed together in order to achieve non-stretch bag making and speed improving;

5. Whole machine adopts inverters control;

6. Rewinding is controlled by PLC;

7. Automatic labeler is optional;

Technical Details:

Model

OJF 800

Width of bag making

200-600mm

Length of bag making

300-1200mm

Speed of bag making

80-200 bags/min or 80m/min

Thickness of bag making

0.006-0.02mm

Usage of machine

produce bottom sealing flat on roll garbage bag

Total power

12kw

Weight

1800kgs

Dimension of installation

6200*1800*1800mm

Voltage of machine

380V, 50Hz,3-ph

Free spare parts:

Name

Quantity

Tool box

1set

thermocouple

1pc

push button switch

2pcs

spring

100pcs

relay

1pc

Solenoid valve

1pc

proximity switch

1pc

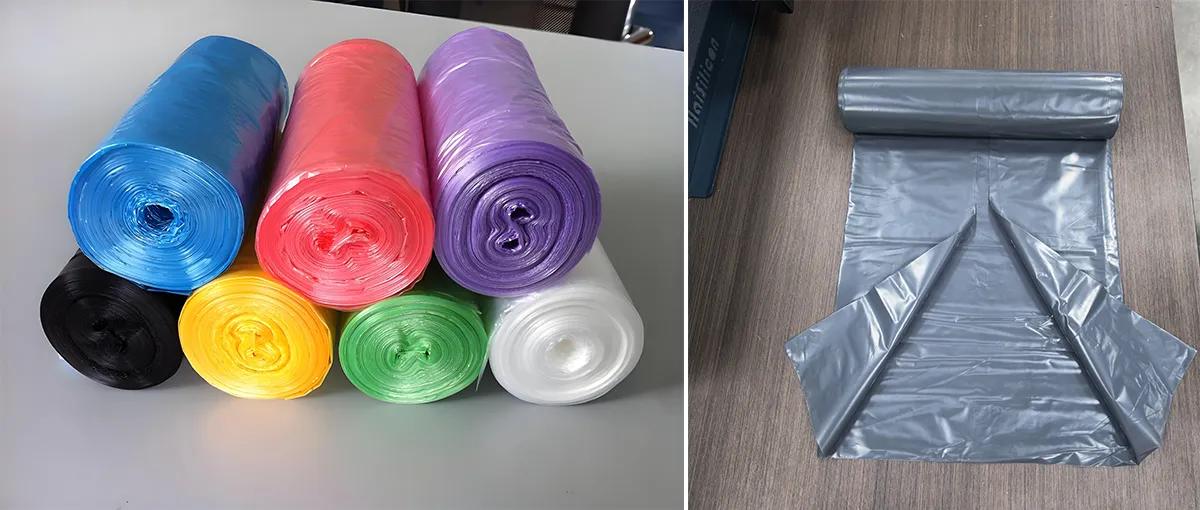

Final products of machine:

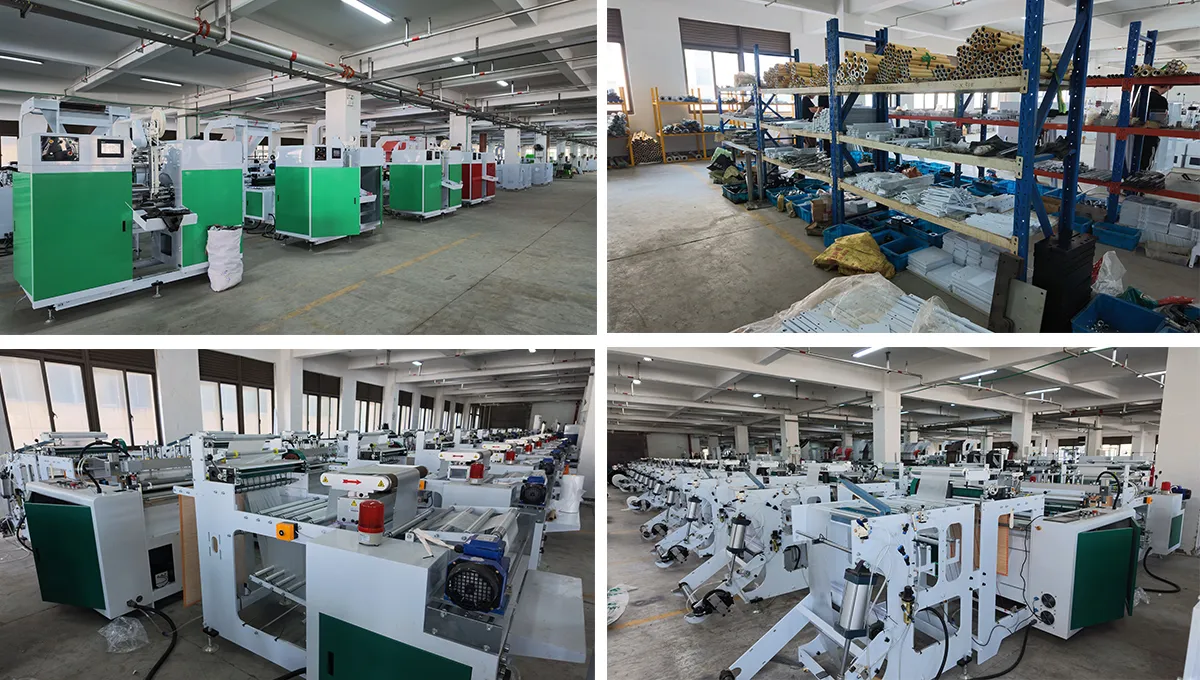

Our workshop:

Shipment:
