OJ 300*2 Automatic star sealing perforated T-shirt garbage bag on roll making machine
This equipment is specialized in producing coreless on roll star sealing t-shirt bags for household using. It is designed in double lines with automatic rewinding system, equipped with star seal knife and special designed perforation punch knife, which make the perforation line evenly and easy to tear.
Performance and features:
Touch screen computer control of whole machine;
Two sets servo motor control to make it easy to adjust the bag length and machine speed;
Four sets of EPC to ensure neat winding;
Automatic roll changing to save labor cost and time;
Auto labelers optional
Technical details:
|
Model |
OJ 300*2 |
|
Width of bag making |
80-180mm |
|
Length of bag making |
100-1000mm |
|
Speed of bag making |
80-180 bags/min*2 or 90m/min |
|
Thickness of bag making |
0.006-0.025mm |
|
Usage of machine |
produce star sealing T-shirt on roll garbage bag |
|
Total power |
20kw |
|
Weight |
1800kgs |
|
Dimension of installation |
6200*2200*1800mm |
|
Voltage of machine |
380V, 50Hz,3-ph |
Free spare parts:
|
Name |
Quantity |
|
Tool box |
1set |
|
thermocouple |
1pc |
|
push button switch |
2pcs |
|
spring |
100pcs |
|
relay |
1pc |
|
Solenoid valve |
1pc |
|
proximity switch |
1pc |

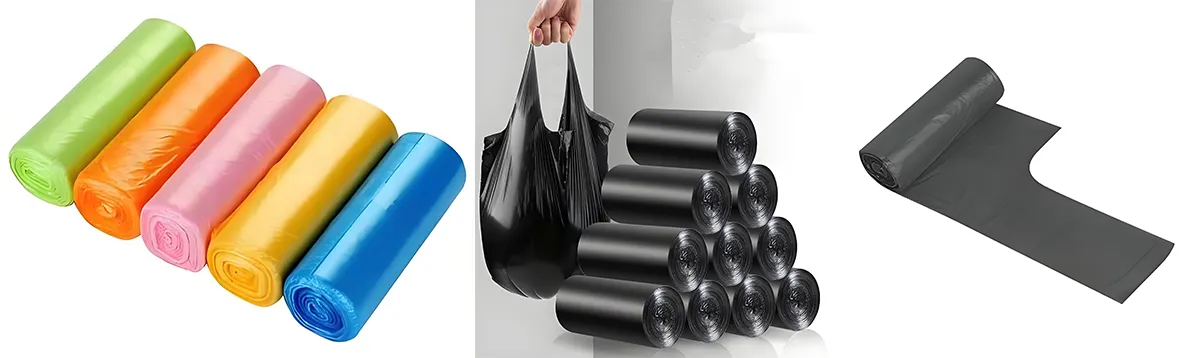

Final products of machine:

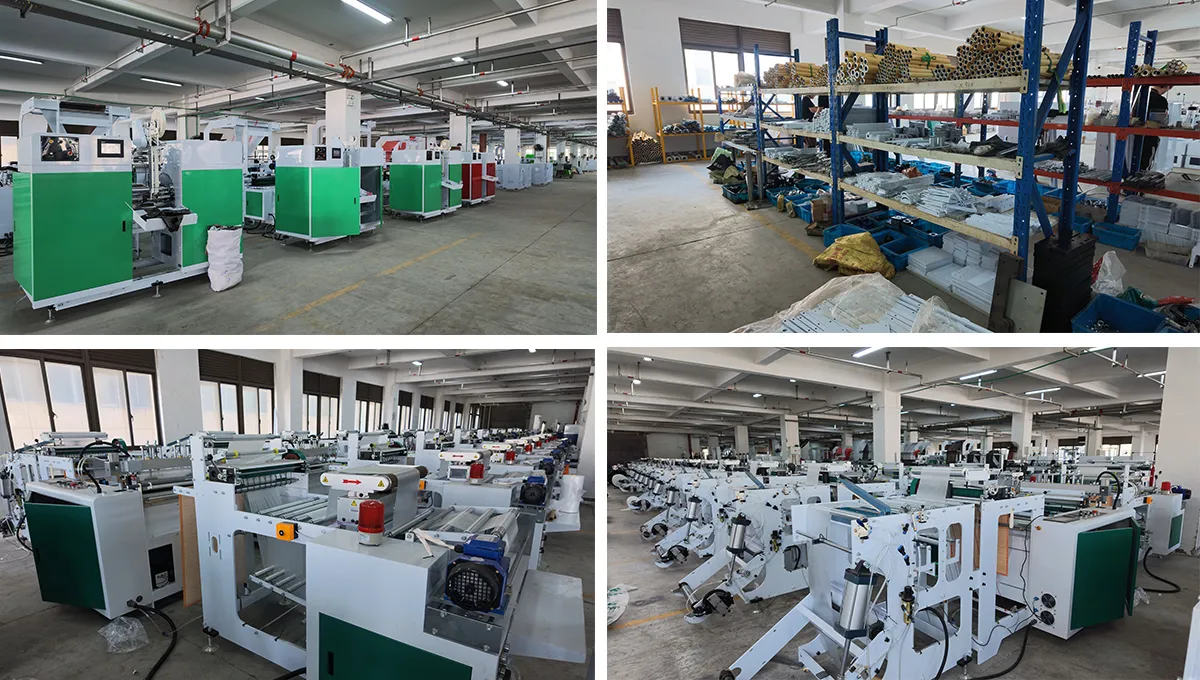

Our workshops:

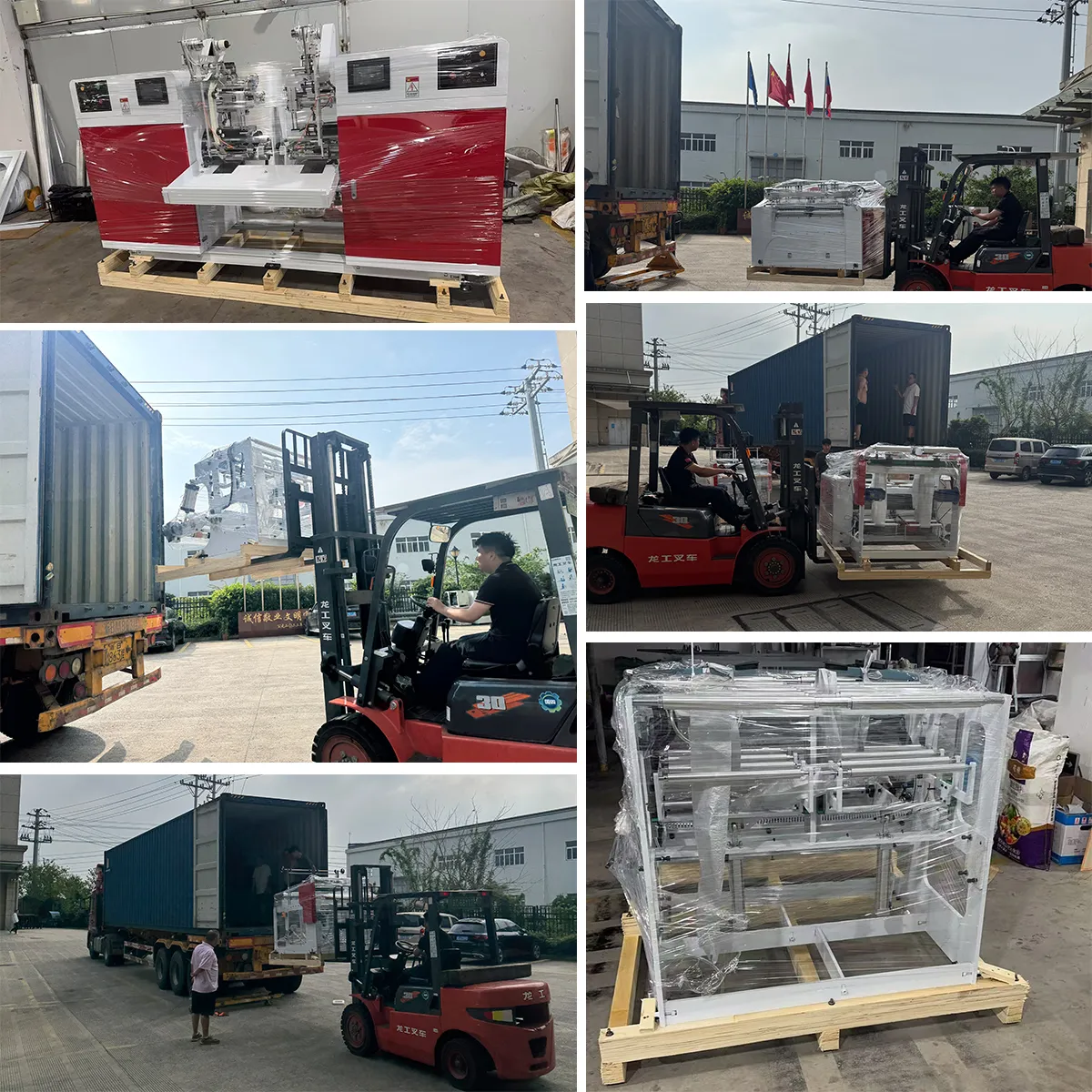

Shipment:
