OJYX 500x2 Automatic Two Lines Bag On Roll Making Machine With Core

OJYX 500x2 machine is used to produce bags-on-roll with paper or PVC core, two kinds of blade interchangeable, U-shape blade to make t-shirt bag, and flat perforation blade for flat bag on roll. Whole machine adopts servo motors control, which makes machine more stable. Automatic core changing to reduce labour force and maximize machine productivity.
Performance and characteristics:

1. The entire machine adopts computer control, automatic counting with a programmable count alarm;

2. The entire process, from film rolls to finished bag, is completed automatically in a single operation;

3. Servo motors and photoelectric tracking ensure accurate bag length;

4. Hot sealing knife and perforation knife are designed together in order to achieve non-stretch bag making and speed improving;

5. Whole machine adopts inverters control;

6. Rewinding is controlled by PLC;

7. Automatic labeler is optional;

Technical Details:

Model

OJYX 500 *2

Width of bag making

100-400mm*2 lines

Length of bag making

100-800mm

Speed of bag making

80-300 bags/min or 120m/min*2lines

Thickness of bag making

0.006-0.02mm

Usage of machine

produce flat on roll food bag with core

Total power

              25kw

Weight

2800kgs

Dimension of installation

6200*2500*1800mm

Voltage of machine

380V, 50Hz,3-ph or as required

Free Spare parts:

Name

Quantity

Tool box

1set

thermocouple

1pc

push button switch

2pcs

spring

100pcs

relay

1pc

Solenoid valve

1pc

proximity switch

1pc

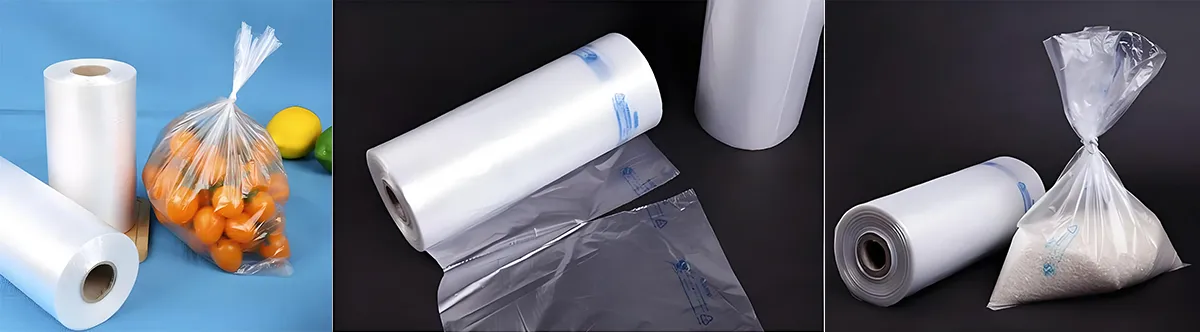

Final Products of Machine:

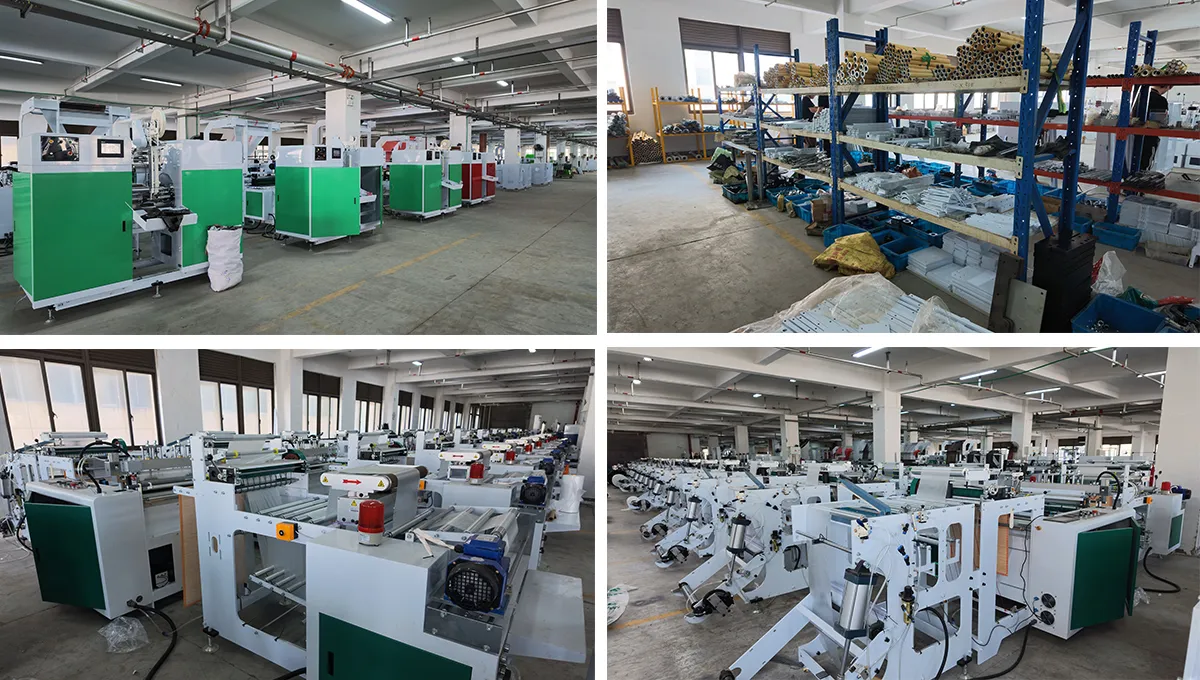

Our workshop:

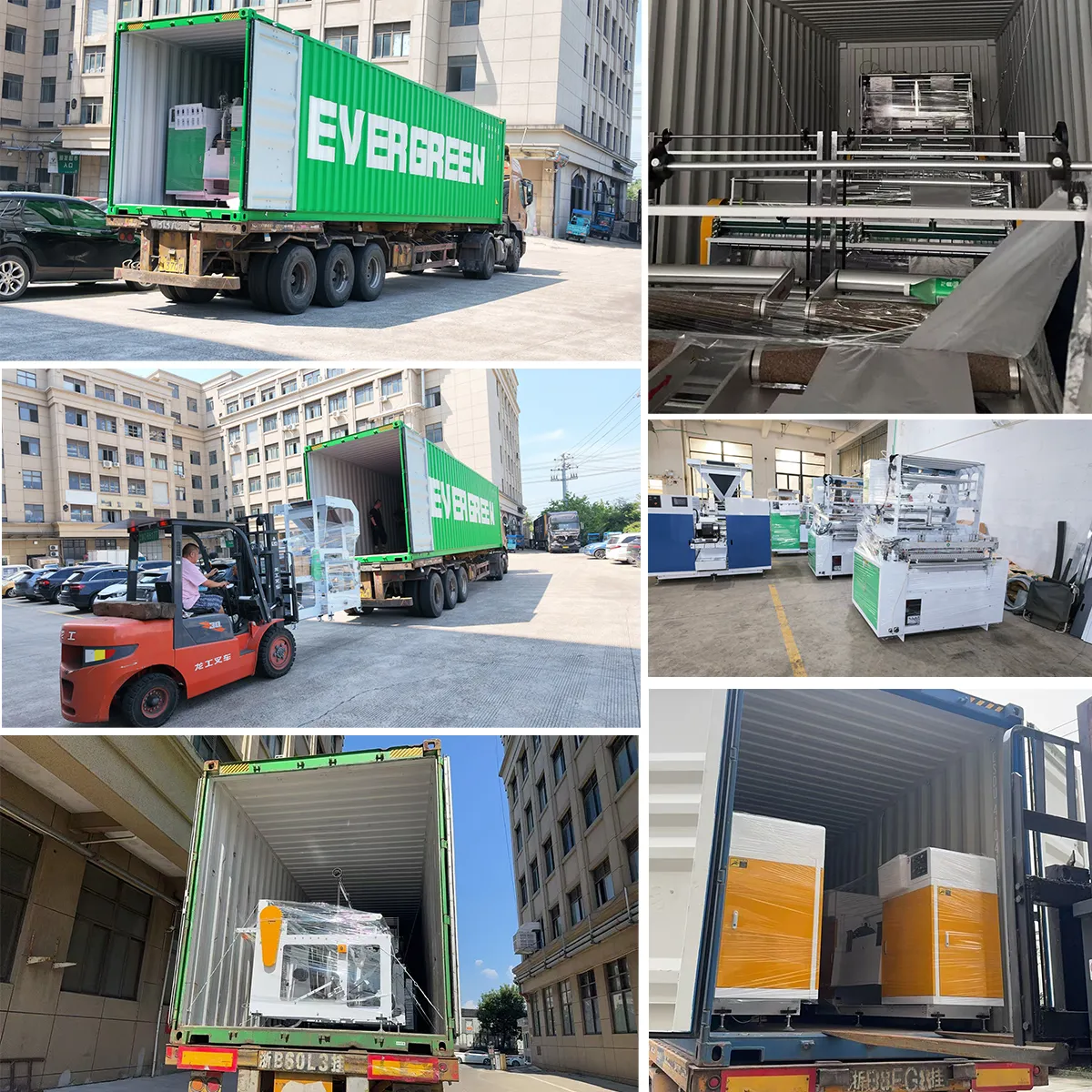

Shipment:
