OJDT 800 Full Automatic Draw Tape On Roll Garbage bag Making Machine

This draw tape on roll garbage bag machine is used for producing traditional and biodegradable draw tape garbage bags. Draw string for easy lifting and taking away, this design allows user to close bag easily without touch the waste.
Performance and features:

1. This equipment is the first of its kind in China, independently developed and manufactured by integrating advanced technologies from both domestic and international sources.

2. The entire machine is equipped with a computer control system and drive by servo motor, ensuring high operational precision and strong stability.

3. Equipped with a photoelectric automatic tracking system, it supports one-button switching between white and colored bags, adopts microcomputer-controlled length setting, automatic counting, low-volume alarm, and automatic temperature control functions.

4. It has automatic functions for cutting, air injection, semi-circular hole making, strap threading, strap shifting, side sealing, bottom sealing, and point breaking.

5. Utilizing a tension-free sealing mechanism, the sealing and breaking processes are completed simultaneously, resulting in a firm, flat seal and a neat, aesthetically pleasing appearance.

6. It can realize integrated processing and production of continuous roll-up and drawstring garbage bags and continuous roll-up flat bags.

7. The entire machine is a fully automated production line, with a leading level of automation in the industry. It is an ideal device for producing folded, flat-mouth garbage bags and can perfectly replace similar imported products.

Technical details:

Model

OJDT-800

OJDT-1000

OJDT-1200

Width of bag making

400-700mm

500-900mm

600-1100mm

Length of bag making

300-650mm

500-800mm

600-1100mm

speed of bag making

40-120bags/min

40-100bags/min

30-85bags/min

Thickness of bag making

HDPE:0.007-0.025mm, LDPE:0.015-0.05mm

Final products

Draw tape bag on roll, draw string bag on roll

Total power

15kw

15kw

18kw

Weight

3200kgs

3400kgs

3800kgs

Dimension after installation

7000*2000*2200mm

7000*2200*2200mm

7000*2400*2200mm

Voltage of machine

380V,50Hz,3-ph

Free spare parts:

Name

Quantity

Tool box

1set

thermocouple

1pc

push button switch

2pcs

spring

100pcs

relay

1pc

Solenoid valve

1pc

proximity switch

1pc

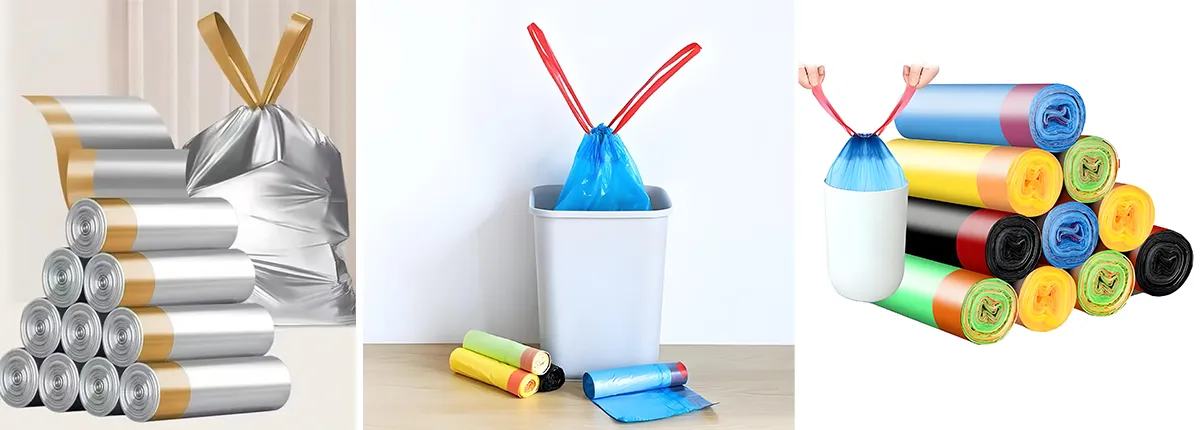

Final products of machine:

Our workshop:

Shipment:
