OJ 500x2 Automatic Two Lines Star-Sealed Flat Garbage Bag On Roll Making Machine

This equipment is specialized in producing coreless on roll star sealing flat garbage bags for household using, double lines, high speed. Hot sealing knife and perforation knife are designed together in order to achieve non-stretch bag making and speed improving.
Performance and features:

1. The entire machine adopts computer control, automatic counting with a programmable count alarm;

2. The entire process, from film rolls to finished bag, is completed automatically in a single operation;

3. Servo motors and photoelectric tracking ensure accurate bag length;

4. Hot sealing knife and perforation knife are designed together in order to achieve non-stretch bag making and speed improving;

5. Whole machine adopts inverters control;

6. Rewinding is controlled by PLC;

7. Automatic labeler is optional;

Technical details:

Model

OJ 500*2

Width of bag making

100-300mm

Length of bag making

100-1000mm

Speed of bag making

80-230 bags/min*2 or 80m/min

Thickness of bag making

0.005-0.02mm

Usage of machine

produce star sealing flat on roll bag

Total power

15kw

Weight

2500kgs

Dimension of installation

6200*2500*1800mm

Voltage of machine

380V, 50Hz,3-ph

Free spare parts:

Name

Quantity

Tool box

1set

thermocouple

1pc

push button switch

2pcs

spring

100pcs

relay

1pc

Solenoid valve

1pc

proximity switch

1pc

Final products of machine:

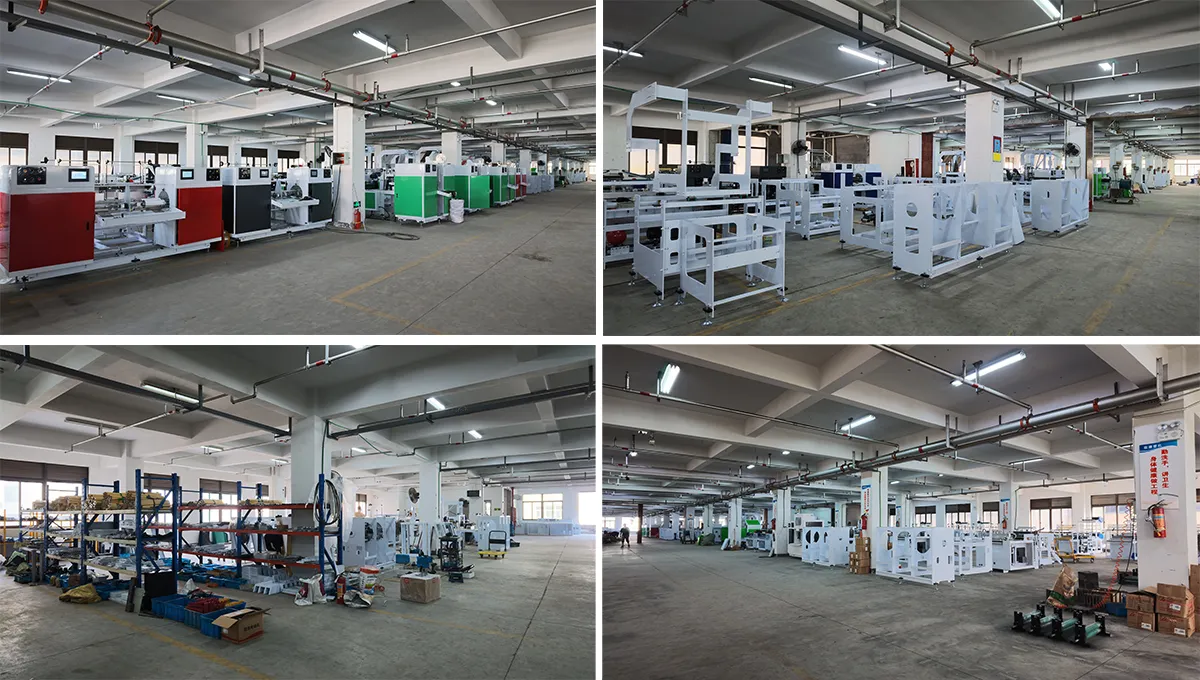

Our workshops:

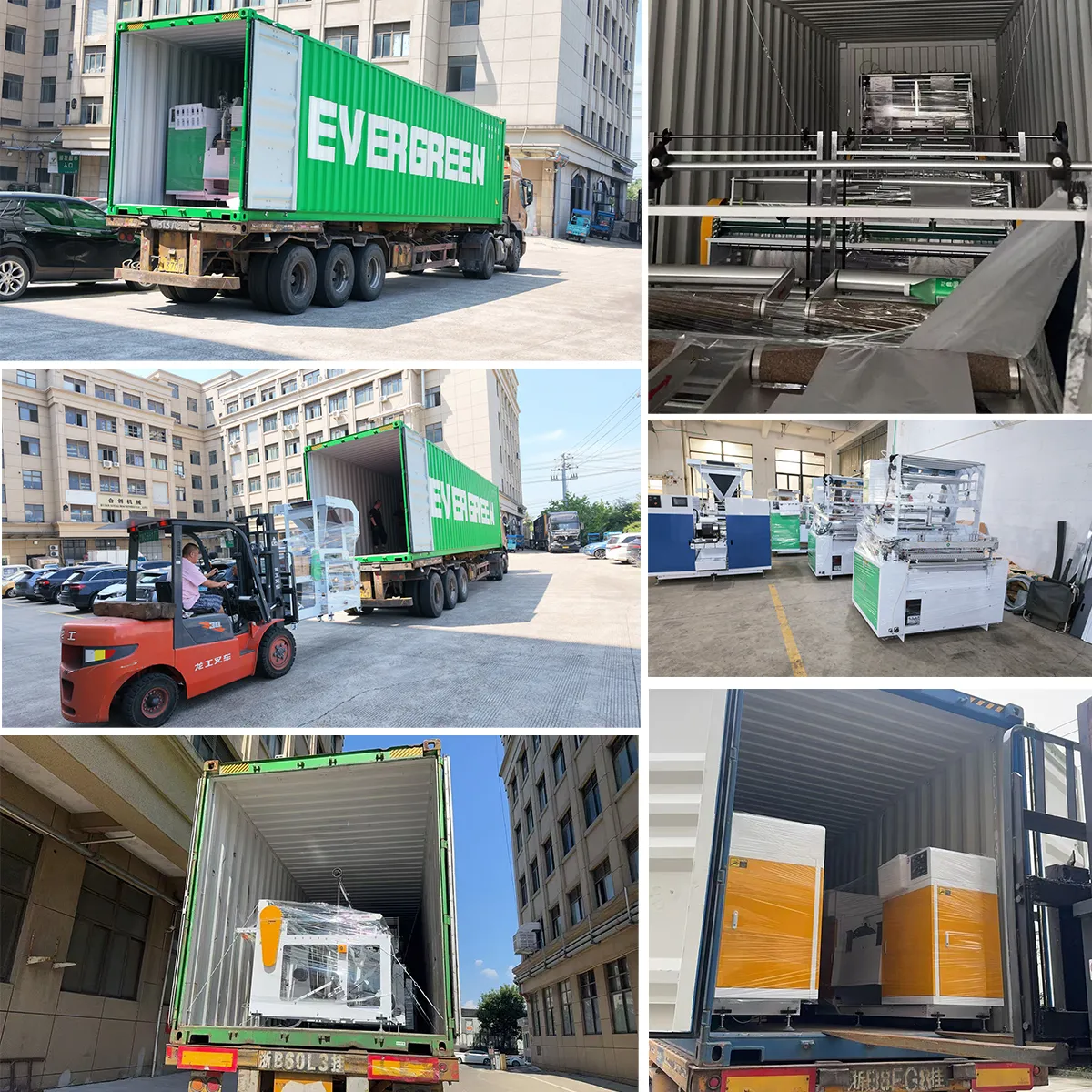

Shipment:
